WGT Type Crowned-Gear Coupling with Intermediate Spacer: Reliable Long-Shaft Power Transmission

The WGT type crowned-gear coupling with intermediate spacer is a rigid-flexible mechanical coupling developed for demanding long-shaft transmission applications. It is intended for systems in which the driving machine and the driven machine are separated by a considerable distance and require a dependable, serviceable, and accurately engineered connection. By combining high-strength flanged half couplings, crowned external gear teeth, internally toothed sleeves, and a dedicated intermediate spacer, the design transfers torque efficiently while accommodating the angular, axial, and radial deviations that occur in practical industrial installations.

Long-distance shaft arrangements are common in metallurgy, mining, ports, construction, hoisting, conveying, and other heavy industries. These applications often involve large motors, gearboxes, drums, rollers, fans, pumps, conveyors, or other equipment operating under high loads and frequent starts and stops. Even when shafts are carefully aligned during installation, operating temperature changes, foundation movement, vibration, bearing wear, manufacturing tolerances, and structural deflection can gradually introduce misalignment. A coupling that cannot compensate for these deviations may experience concentrated tooth loading, excessive wear, vibration, noise, and premature failure.

The WGT configuration addresses these challenges through a crowned-tooth gear profile and an intermediate spacer arrangement. The crowned teeth allow the external gear teeth to remain in effective contact with the internal gear teeth even when the connected shafts are not perfectly collinear. At the same time, the spacer extends the shaft connection distance without requiring an excessively long one-piece shaft or a complicated support arrangement. This makes the coupling particularly useful where equipment layout, maintenance access, or installation conditions make direct shaft connection impractical.

Manufactured by Zhenjiang Orienthold Machinery Co., Ltd., the coupling reflects a production approach that combines mechanical design, material selection, machining, heat treatment options, inspection, assembly, and technical service. The company specializes in industrial couplings and papermaking machinery and supplies products for transportation, metallurgy, chemical engineering, mining, construction, and hoisting applications. Its manufacturing and quality-control capabilities support both standard coupling requirements and customized transmission solutions.

1. The Role of a Coupling in Long-Shaft Transmission

A coupling is more than a simple connector between two shafts. In an industrial drive system, it must transmit torque, tolerate realistic installation conditions, protect connected equipment from harmful loads, and operate reliably over a long service life. The coupling also influences maintenance requirements, vibration behavior, lubrication stability, and the overall efficiency of the power transmission line.

In a short and precisely aligned shaft arrangement, a simple rigid connection may appear sufficient. However, long shaft systems rarely maintain perfect alignment during operation. The distance between machines increases the effect of foundation settlement, thermal growth, shaft deflection, and support tolerances. A rigid connection may transfer these unwanted forces directly into the bearings, gears, drums, and motor shafts. The result can be elevated bearing loads, uneven gear wear, seal damage, and irregular vibration.

A flexible coupling introduces controlled flexibility into the system. It still transmits torque through a positive mechanical connection, but it allows limited relative movement between the connected shafts. The WGT type coupling achieves this through gear tooth engagement. Rather than relying on an elastomeric element or a friction-based connection, it uses carefully formed crowned teeth to transfer torque across the coupling while compensating for shaft deviations.

The intermediate spacer adds another important function. It creates a defined distance between the two flanged half couplings and allows the coupling to bridge a longer shaft span. This arrangement can be selected for systems in which the two machines are separated by guards, supports, drums, housings, or other structural components. It also offers practical benefits during installation and removal, since the spacer can be designed as a separate part that simplifies access to the connected equipment.

2. Construction of the WGT Type Coupling

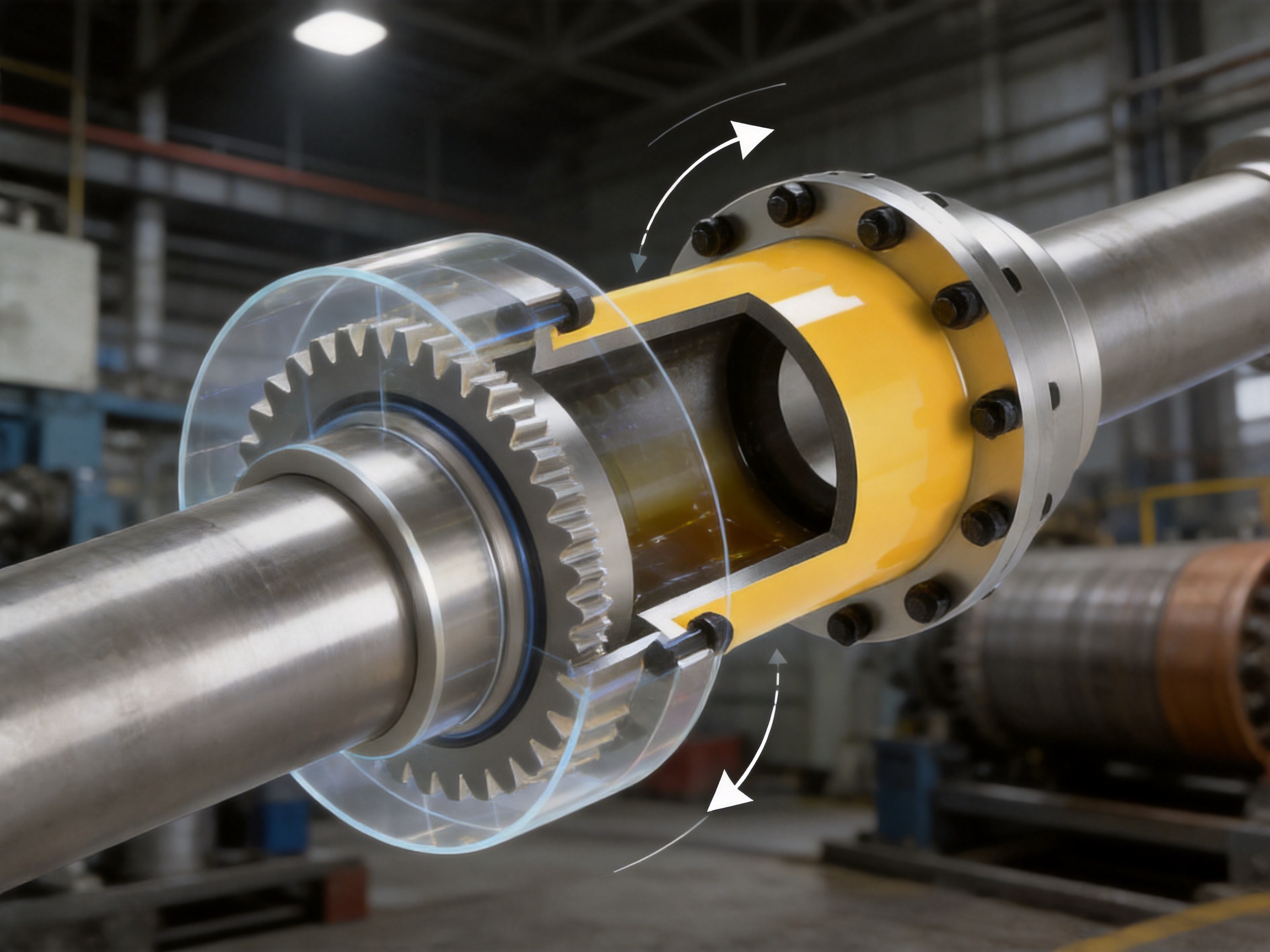

The WGT type crowned-gear coupling with intermediate spacer is composed of several coordinated elements. The principal parts include two flanged half couplings with external crowned teeth, internally toothed sleeves, an intermediate spacer, fastening components, sealing arrangements, and a lubrication cavity. Each part contributes to torque transfer, alignment compensation, or long-term operating reliability.

2.1 Flanged Half Couplings

The flanged half couplings are installed on the driving and driven shafts. Depending on the selected configuration, the shaft connections may use keys, splines, interference fits, shrink arrangements, or other engineered connection methods. The flange provides the structural interface for the gear components and establishes the dimensional relationship between the shaft centerline and the coupling body.

Because the half couplings carry the transmitted torque, they must be manufactured with suitable strength, dimensional accuracy, and surface quality. The flange geometry must also maintain adequate stiffness so that the gear teeth remain correctly supported under load. Accurate concentricity between the shaft bore, flange, and gear teeth is essential for reducing runout and ensuring consistent tooth engagement.

2.2 Crowned External Gear Teeth

The external teeth are the defining feature of the coupling. Unlike a conventional straight-tooth gear connection, the working surface of each external tooth is crowned. The curvature center of the crowned tooth is positioned in relation to the gear axis so that the tooth can accommodate angular movement between the shaft axes.

When the shafts operate at a small angular deviation, a straight-tooth coupling may concentrate contact near an edge of the tooth. This reduces the effective contact area and increases local stress. The crowned profile allows contact to move progressively across the tooth surface while maintaining useful torque-carrying capacity. This is one of the main reasons crowned gear couplings are widely used in heavy-duty industrial applications.

The crowned shape also helps reduce sensitivity to minor alignment errors. It does not eliminate the need for correct installation, and it does not permit unlimited angular movement. Instead, it provides a controlled compensation capability within the rated operating limits. Correct sizing, lubrication, sealing, and alignment remain essential to achieve the expected service life.

2.3 Internally Toothed Sleeves

The internally toothed sleeves engage with the external crowned teeth of the half couplings. The sleeve surrounds the gear teeth and forms the principal enclosed torque-transfer path. Depending on the exact design, the sleeves may be positioned at the two ends of the intermediate spacer or integrated into a sleeve assembly that connects the two sides of the coupling.

The internal teeth must be machined accurately to ensure smooth engagement with the crowned external teeth. Proper tooth geometry helps distribute the transmitted torque across multiple teeth rather than concentrating the load at one or two contact points. The sleeve also contributes to the protection of the gear mesh by enclosing the lubricated area and supporting the sealing arrangement.

2.4 Intermediate Spacer

The intermediate spacer is the central component that differentiates this long-shaft coupling arrangement from a compact gear coupling. It connects the two coupling sections while maintaining the specified distance between the shafts. The spacer can be designed in different lengths and dimensions according to the required shaft separation, installation envelope, and torque rating.

A separate spacer makes the coupling adaptable to a range of equipment layouts. It can help accommodate the distance between a gearbox output shaft and a conveyor drive shaft, between a motor and a large machine shaft, or between two shafts positioned on opposite sides of a drum or support structure. In many installations, the spacer also improves maintenance access because the coupling can be separated at a defined intermediate location.

The spacer must have adequate torsional strength and bending stiffness. Although the gear teeth provide flexibility, the spacer itself must remain stable under torque, rotating mass, and any forces generated by the connected equipment. Its length, diameter, material, balance, and connection details must therefore be considered together rather than selected independently.

2.5 Lubrication and Sealing System

Gear couplings depend on an effective lubrication system. The lubricant reduces sliding friction between the crowned external teeth and the internal teeth, limits wear, helps dissipate heat, and protects the tooth surfaces from corrosion. A suitable sealing system retains the lubricant inside the coupling and prevents dust, water, scale, and other contaminants from entering the gear chamber.

Industrial environments such as steel mills, mines, ports, and construction sites may expose couplings to water spray, metallic particles, abrasive dust, mud, and elevated temperatures. Reliable sealing is therefore a major factor in service life. The sealing arrangement should be inspected periodically, and the lubricant should be selected and replenished according to the operating speed, torque, temperature, environmental conditions, and manufacturer’s recommendations.

3. Operating Principle and Torque Transmission

The WGT coupling transmits torque through the positive engagement of external and internal gear teeth. When the driving shaft rotates, its flanged half coupling turns the external crowned teeth. These teeth engage with the internal teeth of the sleeve, transferring the torque through the sleeve and intermediate spacer to the opposite coupling section. The second set of gear teeth then transfers the torque to the driven shaft.

Because several teeth share the load, the coupling can transmit substantial torque within a relatively compact radial envelope. The actual allowable torque depends on tooth size, material, heat treatment, shaft dimensions, speed, lubrication, operating temperature, misalignment, and service factor. A proper selection must consider both steady operating torque and transient loads caused by starting, stopping, reversing, jamming, impact, or variable production conditions.

The tooth mesh also permits controlled relative movement. Under angular misalignment, the external crowned teeth tilt slightly within the internal sleeve. The curved tooth surface maintains a more favorable contact condition than a straight tooth would provide. Under axial movement, the teeth can move within the sleeve clearance, subject to the specified axial capacity. Radial misalignment is accommodated through the geometric relationship between the crowned teeth and the internal sleeve, again within the limits of the design.

The coupling should never be treated as a replacement for proper shaft alignment. Its purpose is to accommodate expected operating deviations, not to compensate for careless installation or excessive structural movement. If misalignment exceeds the permissible range, tooth pressure, sliding velocity, heat generation, and seal loading may increase significantly. Correct installation and periodic inspection are therefore essential.

4. Key Advantages of the Crowned-Gear Design

4.1 Compensation for Angular Misalignment

Angular misalignment occurs when the centerlines of two connected shafts intersect at an angle rather than forming one straight line. It can result from installation tolerances, uneven foundations, bearing movement, thermal expansion, or deflection under load. The crowned tooth profile allows the coupling to maintain contact across a changing portion of the tooth surface as the shafts rotate at an angle.

This ability is particularly valuable in long-distance transmission systems. The greater the separation between machines, the more difficult it can be to maintain perfect angular alignment across the entire shaft line. A crowned gear coupling provides a controlled degree of flexibility while retaining a positive, high-capacity torque path.

4.2 Compensation for Axial Movement

Axial movement can be caused by thermal expansion, thrust forces, bearing clearance, shaft movement, and changes in machine operating conditions. The internal sleeve and external gear arrangement provide a defined amount of axial freedom, allowing the shafts to move relative to one another without imposing excessive axial force on the connected equipment.

Axial capacity is not unlimited and must be checked during selection. Equipment with substantial thermal growth or intentional axial movement may require special design features, an appropriate spacer length, or additional thrust-control provisions. When correctly specified, however, the WGT coupling can reduce the transmission of unwanted axial loads into bearings and machine housings.

4.3 Compensation for Radial Deviation

Radial misalignment occurs when two shaft centerlines are parallel but offset. In actual equipment, radial deviation may develop because of bearing wear, foundation movement, thermal effects, manufacturing tolerances, or structural deflection. The crowned gear geometry permits the coupling to tolerate a degree of radial offset while maintaining torque transmission.

Radial compensation can reduce the sensitivity of the overall drive line to small installation deviations. It may also help prevent uneven loading of the gear teeth and connected bearings. Nevertheless, excessive radial deviation can produce high tooth sliding and accelerated wear, so alignment measurements should be taken during installation and included in scheduled maintenance.

4.4 More Uniform Tooth Loading

The crowned profile improves the contact condition between the external and internal teeth. By reducing sharp edge contact, it encourages a more gradual distribution of load across the working tooth surface. More uniform loading helps control local stress concentration and may reduce pitting, scuffing, tooth deformation, and irregular wear.

Uniform tooth loading is especially important in heavy-duty equipment where torque changes quickly or where the coupling operates for long periods under high load. It can also contribute to smoother running and lower vibration when the coupling is correctly balanced, lubricated, and aligned.

4.5 High Torque Capacity in a Compact Arrangement

Gear couplings are known for their high torque-to-size ratio. The WGT design uses mechanical tooth engagement rather than a relatively soft elastic element, allowing it to transmit high torque through a robust and compact assembly. This is advantageous where installation space is limited or where a large motor must drive heavy equipment without using an oversized flexible element.

The compact nature of the gear mesh can also reduce the radial space required around the shaft line. This may simplify the design of guards, platforms, machine housings, and maintenance access areas. The final dimensions must still be selected according to the required torque, bore size, speed, misalignment, and safety requirements.

4.6 Suitability for Heavy and Demanding Service

The coupling is suitable for applications involving high loads, frequent starts, low speeds, large shafts, and demanding environmental conditions. Its steel construction and gear-tooth torque path are well suited to industries where production equipment must operate continuously and downtime is costly.

Surface hardening of the gear teeth can be considered for applications that require increased resistance to wear and contact fatigue. The appropriate material and heat-treatment condition depend on the coupling size, load, speed, tooth design, and operating environment. A customized specification can help match the coupling to the actual duty rather than relying on a general-purpose selection.

5. Advantages Compared with Alternative Coupling Types

Industrial couplings are available in many forms, including elastic sleeve pin couplings, elastomeric pin couplings, diaphragm couplings, tire couplings, plum elastic couplings, cross universal couplings, and other gear coupling designs. Each type has a suitable application range. The WGT crowned-gear coupling is particularly advantageous when high torque, long shaft separation, and misalignment compensation must be combined in one transmission system.

5.1 Compared with Straight-Tooth Gear Couplings

A straight-tooth gear coupling may be more sensitive to angular misalignment because the contact can move toward the edge of the tooth. This can increase local pressure and wear when the shafts are not perfectly aligned. The crowned tooth profile of the WGT coupling provides a more favorable geometry for angular movement and helps maintain effective contact under practical operating conditions.

The crowned design does not remove the need for maintenance, but it can provide a broader operating margin when compared with a similar straight-tooth arrangement. This is valuable in equipment subject to thermal changes, vibration, or foundation movement.

5.2 Compared with Elastomeric Couplings

Elastomeric couplings, including plum, tire, and pin designs, can provide excellent vibration damping and may be convenient for moderate-duty applications. However, their elastomeric elements can be affected by temperature, oil, chemicals, ultraviolet exposure, aging, compression set, and fatigue. They may also have limitations in very high torque, high temperature, or large-bore applications.

The WGT coupling uses a steel gear structure and is therefore suitable for applications where a durable metallic torque path is preferred. It can support large loads and extended shaft distances without depending on the long-term resilience of an elastomeric element. If significant vibration isolation is required, the system designer should evaluate whether a gear coupling or an elastomeric coupling is more appropriate for the specific machine dynamics.

5.3 Compared with Diaphragm Couplings

Diaphragm couplings are valued for their no-lubrication operation, high-speed capability, and precise flexibility. They are often selected for turbines, compressors, generators, and other high-speed machinery. However, their performance depends on carefully designed flexible membranes and controlled alignment conditions. They may not always be the most economical or practical choice for low-speed, high-torque, impact-loaded equipment.

The WGT coupling is designed around a lubricated gear mesh and is particularly appropriate for heavy industrial drives, including conveying, hoisting, metallurgy, port, and mining equipment. Its intermediate spacer also offers a practical solution for long shaft separation that may be more suitable than a membrane-based design in large, rugged machinery.

5.4 Compared with Universal Couplings

Cross universal couplings can accommodate substantial angular movement and are useful when shafts operate at a pronounced angle. However, they may introduce speed fluctuation depending on the arrangement and working angle. They can also require additional support, lubrication, and maintenance of cross bearings.

The WGT crowned-gear coupling is intended for systems in which the shafts are generally aligned but experience limited angular, axial, and radial deviations. It provides a compact and synchronized torque connection without the characteristic kinematic behavior of a universal joint. The choice should be based on the actual shaft geometry and required operating angle.

6. Long-Distance Transmission Benefits of the Intermediate Spacer

The intermediate spacer allows the coupling to connect shafts that are too far apart for a conventional compact coupling. This can eliminate the need for a specially manufactured long shaft or reduce the complexity of a multi-section shaft line. In some equipment layouts, the spacer can bridge the distance between machine housings while keeping the gear coupling elements close to the shaft ends.

Long shaft systems often require careful management of critical speed, torsional vibration, shaft deflection, bearing spacing, and installation access. The coupling cannot solve every shaft-line problem, but its spacer arrangement gives designers greater flexibility in positioning the drive and driven machines. It can be specified according to the required distance between shaft ends and the available installation envelope.

Another benefit is maintenance planning. A separable intermediate arrangement may allow technicians to remove or inspect coupling sections without dismantling an entire machine. In large conveyors, drums, cranes, and production lines, reducing disassembly time can have a significant effect on downtime and maintenance cost.

The spacer also supports better load distribution across a long transmission system. When the coupling is correctly sized and balanced, torque can be transferred through a stable rotating assembly while misalignment is managed at the gear interfaces. This can reduce the alignment sensitivity of the overall connection and help protect the shafts and bearings from unnecessary reaction forces.

7. Material Selection and Gear Tooth Surface Treatment

The main components of the WGT coupling are manufactured from high-strength steel selected for the required torque, fatigue resistance, toughness, machinability, and operating environment. The material grade should be matched to the component function. Flanged hubs, gear sleeves, spacers, bolts, and other parts may have different mechanical and heat-treatment requirements.

Gear tooth surfaces are exposed to repeated contact stress and sliding during operation. For demanding applications, surface hardening may be used to improve resistance to pitting, scuffing, adhesive wear, and plastic deformation. Depending on the design and production route, suitable treatments may include induction hardening, carburizing, nitriding, or other controlled processes. The selection must consider tooth size, required hardness depth, core toughness, dimensional stability, and post-treatment finishing.

A hard tooth surface with a tough core can provide a useful balance between wear resistance and resistance to shock loading. This balance is important in mining, metallurgy, hoisting, and conveying equipment, where sudden load changes may occur. Heat treatment should be controlled carefully to prevent excessive distortion, because tooth accuracy and concentricity are essential to smooth coupling operation.

Material traceability and process documentation are also important for industrial coupling production. Records of raw material, machining, heat treatment, dimensional inspection, and final assembly help maintain consistent quality across production batches. A professional manufacturer can use these records to support product verification and investigate any service issue that may arise.

8. Advanced Manufacturing Process

The reliability of a crowned-gear coupling depends on the complete manufacturing process rather than on tooth geometry alone. Zhenjiang Orienthold Machinery Co., Ltd. integrates design, production, inspection, and service to support the manufacture of industrial couplings. Its production approach emphasizes technical capability, advanced equipment, and comprehensive testing methods.

8.1 Engineering Design and Application Review

The process begins with an assessment of the operating requirements. Key information includes motor power, operating torque, peak torque, speed, shaft diameters, shaft-end distances, bore and keyway details, type of load, starting frequency, ambient temperature, installation position, environmental contamination, and expected maintenance conditions.

For a long-shaft coupling, the design review should also consider spacer length, rotating balance, shaft deflection, critical speed, bearing arrangement, guard dimensions, axial movement, and available removal clearance. This information allows the coupling to be configured for the actual machine rather than selected only by nominal motor power.

8.2 Precision Machining

High-accuracy machining is required for the bores, flanges, gear teeth, spacer connections, sealing locations, and mounting surfaces. CNC machining and appropriate gear-processing equipment can help maintain repeatability in tooth profile, concentricity, pitch, runout, and dimensional tolerances.

The crowned external teeth require controlled geometry across the tooth face. Any deviation in crown shape, tooth thickness, or spacing can affect contact distribution and backlash. Internal sleeve teeth must be matched to the external gear profile so that the coupling can transmit torque smoothly while retaining the designed movement capacity.

Machining sequences should be planned to control distortion and preserve reference accuracy. Critical surfaces may be finished after heat treatment, and inspection points should be established throughout production rather than only at final assembly. Proper tool management, calibration, and process monitoring support stable quality during repeated manufacturing.

8.3 Heat Treatment Control

When surface hardening is specified, the treatment process must achieve the required hardness and depth without compromising the dimensional accuracy of the gear teeth. Heating rate, atmosphere, temperature, quenching, tempering, and cooling conditions all influence the final result.

After heat treatment, components may require grinding, honing, or other finishing operations. These processes restore the required tooth geometry and surface finish. Inspection may include hardness testing, metallographic verification, dimensional checks, and visual examination for cracks or unacceptable distortion.

8.4 Inspection and Testing

Comprehensive inspection helps verify that the finished coupling conforms to the design requirements. Typical checks may include material verification, shaft-bore dimensions, keyway dimensions, flange dimensions, gear-tooth measurements, concentricity, radial runout, axial runout, surface hardness, sealing fit, bolt quality, and assembly clearances.

Depending on the order and application, additional testing may be considered. This may include non-destructive testing of critical parts, balancing verification, tooth-contact inspection, trial assembly, rotational testing, or load-related evaluation. The exact inspection plan should reflect the coupling size, application risk, operating speed, and customer requirements.

Testing equipment and inspection procedures are especially important for products used in large industrial installations. A coupling failure can interrupt a complete production line, so quality management must extend from incoming material through final shipment. Orienthold Machinery operates under a strict quality supervision system and maintains inspection and testing equipment to support this objective.

8.5 Assembly and Final Verification

During assembly, technicians verify the correct relationship between the half couplings, sleeves, intermediate spacer, seals, fasteners, and lubrication provisions. Components must be clean and free from machining chips, abrasive particles, or other contaminants. Correct assembly clearances are checked before the coupling is prepared for shipment.

Final verification may include dimensional confirmation, marking, packing inspection, documentation review, and protection of machined surfaces. For customized couplings, the final product should be checked against the approved drawing and technical specification. Proper packaging protects the gear teeth, sealing surfaces, bores, and flange faces during transport and storage.

WGT Type Crowned-Gear Coupling with Intermediate Spacer

9. Quality and Service Strengths of the Manufacturer

Zhenjiang Orienthold Machinery Co., Ltd. is a medium-sized enterprise specializing in couplings and papermaking machinery. Its business structure combines design, production, and service, enabling technical information to move efficiently from customer consultation to engineering development, manufacturing, inspection, and after-sales support.

The company serves a broad range of industries, including transportation, metallurgy, chemical engineering, mining, construction, and hoisting. This industrial experience is valuable because coupling requirements vary considerably between applications. A conveyor drive may prioritize continuous operation and contamination resistance, while a crane mechanism may require frequent starts, stops, reversing, and shock-load capacity. Metallurgical equipment may involve heat, scale, and water, whereas chemical machinery may require careful material and sealing selection.

Orienthold Machinery maintains a strict quality supervision system supported by inspection and testing equipment. Its products comply with applicable national standards, while its production capabilities are intended to support consistent quality and reliable service. The company’s technical personnel can help evaluate coupling selection, dimensional requirements, customization, delivery, and maintenance considerations.

Another strength is the availability of one-stop service. Customers may receive support during pre-sales consultation, technical communication, customization, logistics planning, payment coordination, installation guidance, and maintenance support. This integrated approach can simplify procurement for industrial users who need more than a standard catalog component.

Custom manufacturing is particularly important for long-shaft gear couplings. Shaft diameters, keyways, spacer lengths, flange dimensions, mounting restrictions, operating speeds, and environmental conditions often differ from one machine to another. A manufacturer capable of reviewing drawings, producing modified dimensions, and coordinating inspection can help reduce the risk associated with adapting an unsuitable standard product.

10. Application Areas

10.1 Metallurgy

Steel mills and other metallurgical plants use large drives for rolling mills, conveyors, cooling beds, feeders, shears, drums, and auxiliary equipment. These machines may operate under high torque, severe vibration, elevated temperatures, water spray, and metallic scale contamination. The WGT coupling’s crowned gear teeth and robust steel construction are suitable for applications requiring durable torque transfer and controlled misalignment compensation.

10.2 Mining

Mining machinery includes belt conveyors, crushers, hoists, feeders, mills, stackers, reclaimers, and material-handling equipment. Loads can fluctuate significantly, and dust or abrasive particles may enter poorly protected machinery. A properly sealed and lubricated gear coupling can help maintain reliable operation in these conditions. Selection should account for starting torque, impact factor, operating cycle, temperature, and maintenance accessibility.

10.3 Port and Bulk-Handling Machinery

Ports use ship unloaders, stacker-reclaimers, cranes, conveyor systems, winches, and loading equipment. These machines often combine long shaft arrangements with frequent starts, stops, reversing, and outdoor exposure. The intermediate spacer can help bridge equipment distances, while the crowned gear design accommodates small alignment changes caused by structural movement and load variation.

10.4 Construction Equipment

Construction machinery may operate under intermittent and shock-loaded conditions. Hoisting mechanisms, winches, mixers, conveyors, and large rotating systems require couplings that can tolerate practical installation conditions and variable loads. The WGT coupling can be considered where a metallic, high-capacity flexible connection is needed.

10.5 Hoisting and Crane Systems

Crane mechanisms and lifting equipment may experience repeated acceleration, deceleration, reversing, and braking. These operating cycles can produce transient torque that exceeds the nominal running torque. The coupling must therefore be selected with an appropriate service factor and checked for emergency or stall conditions. The spacer arrangement may be useful where the drive and drum shafts are separated by a machine frame or support structure.

10.6 Large Conveying Systems

Large conveyors often require continuous operation, high starting torque, and reliable performance over long production shifts. The WGT coupling can connect a motor, gearbox, and driven pulley or drum while accommodating limited shaft deviations. The design is especially useful when the shaft ends are separated by a larger distance than can be handled by a standard compact coupling.

11. Selection Guidelines

Correct selection begins with accurate operating data. The nominal motor power alone is not enough to determine the proper coupling. Engineers should review the complete load profile and identify the most demanding operating condition.

Selection Parameter	Why It Matters	Recommended Consideration
Nominal torque	Defines the normal continuous transmission requirement.	Calculate from power and rotational speed.
Peak or shock torque	Protects the coupling during starting, stopping, impact, or jamming.	Apply an appropriate service factor.
Rotational speed	Influences balance, heat generation, lubrication, and critical-speed behavior.	Compare continuous and maximum speed.
Shaft diameter and bore	Determines the hub connection and available torque capacity.	Confirm bore, keyway, fit, and shaft-end details.
Spacer length	Defines the distance bridged between the two shaft ends.	Measure shaft separation and maintenance clearance.
Angular misalignment	Controls tooth contact and coupling flexibility.	Measure installation and expected operating deviation.
Axial movement	Affects sleeve travel, thrust loads, and sealing behavior.	Include thermal expansion and bearing movement.
Radial offset	Influences tooth loading and sliding wear.	Check shaft centerline offset under operating conditions.
Environment	Determines sealing, lubricant, material, and protection requirements.	Consider dust, water, heat, chemicals, and outdoor exposure.
Maintenance access	Influences inspection, lubrication, and removal time.	Confirm guard and spacer accessibility.

The coupling should be sized for both torque and bore capacity. A coupling with sufficient nominal torque may still be unsuitable if the shaft bore is too large for the hub section or if the keyway weakens the shaft connection. The service factor should reflect the type of driven machine, daily operating duration, load variation, starts per hour, reversing frequency, and possibility of shock loading.

Speed is another important factor. Although the WGT coupling is suited to many low-speed and heavy-load applications, every rotating assembly must be evaluated for balance and critical-speed behavior. Longer spacers may require additional attention to dynamic balance and shaft support. If the operating speed is high, the manufacturer should receive complete speed and dimensional data before final approval.

Environmental conditions influence the choice of lubricant and seals. In dusty or wet applications, enhanced sealing and more frequent inspection may be required. In high-temperature areas, the lubricant must retain suitable viscosity and stability. In chemically aggressive environments, material compatibility should be reviewed before production.

12. Installation Recommendations

Installation should be performed by qualified personnel using the approved assembly drawing and technical documentation. Before installation, inspect the shafts, bores, keys, flanges, gear teeth, spacer, seals, and fasteners. Remove rust, dirt, burrs, paint, and shipping protection from surfaces that must fit together, while retaining suitable corrosion protection on exposed machined surfaces.

Check the shaft centerlines using appropriate alignment equipment. Angular, parallel, and axial measurements should be recorded rather than estimated visually. The initial alignment should be better than the maximum coupling compensation range whenever practical. Allowance should be made for thermal growth and expected movement between cold installation and normal operating temperature.

Install the hubs or half couplings according to the specified fit and mounting method. Avoid hammering directly on gear teeth, seals, or precision surfaces. If heating is required for an interference fit, control the temperature carefully and prevent contamination of the gear chamber. Fasteners should be tightened to the specified torque using calibrated tools.

After assembly, confirm that the coupling rotates freely by hand where safe and practical. Verify axial position, sleeve seating, spacer alignment, seal installation, and lubrication access. Fill or apply the recommended lubricant in the correct quantity. Too little lubricant can cause excessive wear and heat, while too much may increase churning losses and pressure on the seals.

Before commissioning, ensure that all guards are installed and that no tools, lifting devices, or foreign objects remain near the rotating assembly. Conduct a controlled initial run and observe vibration, noise, temperature, and lubricant leakage. Stop the equipment if abnormal behavior is detected and investigate the cause before returning to normal operation.

13. Maintenance and Service-Life Management

Routine maintenance is essential for any lubricated gear coupling. The maintenance interval should be based on operating conditions rather than a universal calendar period. Continuous operation in a clean indoor environment may require a different schedule from intermittent operation in a dusty, wet, high-temperature, or shock-loaded environment.

During inspection, check for lubricant leakage, damaged seals, loose fasteners, unusual noise, excessive temperature, vibration, and evidence of tooth wear. Examine the coupling guard and surrounding area for grease deposits, metallic particles, or contact marks. Any change from the normal operating condition should be recorded and reviewed.

Lubricant should be replaced or replenished according to the selected product and service conditions. Contaminated lubricant may contain abrasive particles or moisture that accelerate tooth wear. When lubricant is changed, the gear chamber should be inspected and cleaned using an approved method. Do not mix incompatible lubricants without confirmation from the lubricant supplier or coupling manufacturer.

Seal condition is critical. A damaged seal can allow lubricant to escape and contaminants to enter. If the coupling operates in a wet or dusty environment, seal inspection may need to be more frequent. Replacing a worn seal at an early stage is generally less expensive than repairing damaged gear teeth or connected bearings.

Alignment should be rechecked after major maintenance, bearing replacement, foundation work, or an unusual operating event. Changes in vibration, bearing temperature, or tooth wear pattern may indicate that shaft alignment has changed. Correcting the underlying alignment problem is more effective than compensating for it by repeatedly replacing coupling parts.

The service life of a WGT coupling depends on load, speed, misalignment, lubrication, sealing, material, surface treatment, installation, and maintenance. A properly selected and maintained coupling can provide stable service over an extended period, while an incorrectly sized or poorly lubricated coupling may fail prematurely regardless of its nominal construction quality.

14. Troubleshooting Common Operating Problems

14.1 Excessive Noise

Unusual noise may result from insufficient lubricant, incorrect lubricant, worn teeth, excessive backlash, seal damage, loose fasteners, or misalignment beyond the allowable range. Noise that increases with load or speed should be investigated promptly. Continuing operation without inspection may convert a correctable lubrication or alignment issue into a major gear failure.

14.2 Elevated Temperature

High coupling temperature can be caused by excessive tooth sliding, overfilled or unsuitable lubricant, high ambient temperature, seal friction, or overload. Verify the operating torque and speed, inspect the lubricant condition, and check for misalignment. Temperature trends are often more informative than a single measurement, so maintenance teams should record readings during normal operation.

14.3 Lubricant Leakage

Leakage may indicate a damaged seal, incorrect assembly, excessive internal pressure, worn sealing surfaces, or an incompatible lubricant. The coupling should be stopped and inspected if leakage is significant. Running with insufficient lubricant can quickly damage the tooth surfaces.

14.4 Rapid Tooth Wear

Rapid tooth wear can result from contamination, insufficient lubrication, excessive misalignment, overload, incorrect backlash, poor surface hardness, or vibration. A wear pattern concentrated at one edge of the tooth may indicate angular misalignment. Pitting across the working surface may be associated with repeated contact stress or inadequate lubrication. A detailed inspection should be completed before replacing components.

14.5 Vibration

Vibration may be related to coupling imbalance, shaft runout, misalignment, looseness, bearing problems, torsional resonance, or damage to the gear teeth. The spacer length and operating speed should be considered in any dynamic evaluation. Vibration analysis can help distinguish coupling-related problems from faults elsewhere in the drive system.

15. Customization Possibilities

Industrial equipment often requires a coupling that differs from a standard catalog configuration. The WGT design can be evaluated for customized shaft bores, keyways, flange dimensions, spacer lengths, mounting arrangements, tooth specifications, sealing systems, surface treatments, and materials. Customization should be based on complete technical data and approved drawings.

Long-shaft applications may have strict limits on overall length, radial envelope, weight, or removal space. The spacer can be adapted to suit the shaft-end distance, but its dimensions must also satisfy torsional and dynamic requirements. If the spacer becomes substantially longer, engineers should assess balance, bending stiffness, critical speed, and support conditions.

Customization may also address special environmental requirements. Applications involving water, abrasive dust, high temperature, corrosive substances, or outdoor storage may require specific sealing and protective measures. The lubricant cavity, inspection access, and maintenance method can be reviewed as part of the overall design.

Customers should provide motor and driven-machine data, shaft drawings, operating conditions, alignment information, installation constraints, and applicable standards. The manufacturer can then recommend a suitable structure and prepare technical documentation for confirmation before production.

16. Why Choose a Specialized Coupling Manufacturer

A specialized manufacturer offers advantages beyond the ability to produce individual metal components. Coupling performance depends on the interaction between tooth geometry, material, heat treatment, bore accuracy, balance, sealing, lubrication, assembly, and application conditions. A company with experience across these areas is better positioned to identify conflicts and recommend a complete solution.

Orienthold Machinery’s combined design and production capability supports this integrated process. The company can review customer requirements, develop or modify coupling designs, organize manufacturing, perform inspection and testing, and provide service after delivery. This reduces the number of separate suppliers involved in the project and can improve communication between the equipment user and the coupling producer.

Its experience in transportation, metallurgy, mining, construction, hoisting, chemical engineering, and related industries provides a practical understanding of different operating environments. That industrial background is important when selecting service factors, seals, materials, tooth treatments, spacer arrangements, and maintenance procedures.

The company also offers flexible logistics and payment options, together with pre-sales consultation and maintenance support. For international industrial customers, responsive communication and reliable documentation can be as important as manufacturing capacity. Technical drawings, inspection records, packing information, and installation guidance help customers integrate the coupling into their equipment management system.

17. Frequently Asked Questions

17.1 What is the primary purpose of the WGT type crowned-gear coupling?

Its primary purpose is to transmit torque between two shafts that are separated by a considerable distance while accommodating controlled angular, axial, and radial misalignment. The intermediate spacer bridges the distance between the shaft ends, and the crowned gear teeth maintain effective torque transmission under practical operating deviations.

17.2 Why are the gear teeth crowned instead of straight?

Crowned teeth provide a curved working surface that is better suited to angular movement between the shafts. They help reduce edge contact and localized stress when the shafts are not perfectly aligned. This can improve load distribution, reduce wear, and support more stable operation than a comparable straight-tooth arrangement.

17.3 Can the coupling compensate for severe misalignment?

No. The coupling is designed to compensate for limited and controlled misalignment within its specified rating. Severe misalignment can cause excessive tooth pressure, sliding, heat, seal loading, and wear. Shafts should be aligned as accurately as possible during installation, with the coupling used to accommodate normal operating movement rather than major installation errors.

17.4 What industries commonly use this coupling?

Typical industries include metallurgy, mining, ports, transportation, construction, hoisting, and large conveying systems. It may also be considered for other heavy industrial equipment where the drive and driven shafts are separated and require a high-capacity flexible connection.

17.5 Is the coupling suitable for low-speed and heavy-load equipment?

Yes. Its high-strength steel construction and positive gear-tooth torque path make it suitable for many low-speed, heavy-load, and high-power transmission applications. The final selection must still consider peak torque, bore size, speed, service factor, misalignment, lubrication, and environmental conditions.

17.6 Does the coupling require lubrication?

Yes. The gear mesh requires suitable lubrication to reduce friction, control wear, dissipate heat, and protect the tooth surfaces. The coupling should also have an effective sealing system to retain the lubricant and prevent contamination. Lubricant type, quantity, and replacement interval should follow the approved technical specification.

17.7 Can the spacer length be customized?

The intermediate spacer can often be customized to suit the required shaft separation and installation envelope. However, a longer or heavier spacer may affect balance, bending stiffness, and critical-speed behavior. Any customized spacer should be reviewed by the manufacturer using complete dimensional and operating information.

17.8 Can the gear teeth be surface-hardened?

Gear teeth can be surface-hardened when the operating requirements justify additional resistance to wear and contact fatigue. The appropriate heat-treatment method depends on tooth dimensions, load, speed, material, and required service life. Heat treatment should be controlled carefully to preserve tooth accuracy and dimensional stability.

17.9 How does this coupling compare with an elastomeric coupling?

The WGT coupling provides a metallic gear-based torque path and is generally better suited to high torque, large shaft sizes, long shaft separation, and demanding heavy-industrial conditions. Elastomeric couplings may offer stronger vibration damping and simpler no-lubrication operation in suitable applications. The best choice depends on torque, speed, temperature, vibration, misalignment, and maintenance requirements.

17.10 What information is required for product selection?

Important information includes motor power, operating speed, nominal and peak torque, shaft diameters, shaft-end distance, bore and keyway details, expected misalignment, temperature, environmental contamination, operating cycle, starts and stops, reversing frequency, mounting restrictions, and maintenance access. Drawings and photographs of the installation can also help with engineering review.

17.11 What should be checked during routine maintenance?

Inspect lubricant level and condition, seal integrity, tooth wear, fastener tightness, abnormal noise, temperature, vibration, shaft alignment, and evidence of contamination or leakage. Maintenance findings should be recorded so that gradual changes can be identified before they develop into an unexpected failure.

17.12 Can the manufacturer provide technical support?

Yes. Orienthold Machinery provides pre-sales consultation, customization support, production coordination, inspection and testing, logistics assistance, and maintenance-related service. Customers can discuss operating conditions and dimensional requirements with the manufacturer before finalizing the coupling specification.

18. Ordering and Technical Communication

Efficient technical communication helps ensure that the delivered coupling matches the equipment. Before placing an order, customers should provide a data sheet or drawing showing the shaft diameters, shaft-end distances, keyways, coupling mounting space, and required spacer length. Operating details should include power, speed, torque, duty cycle, ambient conditions, and any known alignment or vibration issues.

The purchaser should also identify whether the coupling will operate indoors or outdoors, whether it will be exposed to water or abrasive dust, whether the equipment operates continuously or intermittently, and whether frequent starts, stops, or reversing will occur. These details influence the service factor, sealing, lubricant, material, heat treatment, and inspection requirements.

For replacement projects, photographs and measurements of the existing coupling can be useful, but they should not replace a formal dimensional check. A replacement coupling must match not only the shaft bores but also the available axial space, flange connections, guard dimensions, key orientation, spacer length, and installation method.

Customers may contact Zhenjiang Orienthold Machinery Co., Ltd. for technical consultation, product customization, and supply arrangements. The company’s sales team can be reached by telephone at +86-18652865511 or by email at sales@ohmach.com. Its manufacturing facility is located at No. 1, Minying Developing Zone, Zhenjiang, Jiangsu, China.

19. Conclusion

The WGT type crowned-gear coupling with intermediate spacer is a practical solution for long-distance shaft transmission in demanding industrial equipment. Its rigid-flexible construction combines the strength and torque capacity of a gear coupling with the controlled flexibility required to accommodate angular, axial, and radial shaft deviations. The crowned external teeth improve contact conditions and help reduce localized stress, while the internally toothed sleeves provide an enclosed and reliable torque path.

The intermediate spacer gives equipment designers greater freedom when the driving and driven machines are separated by a substantial distance. It can simplify the mechanical layout, support maintenance access, and reduce the need for a complicated one-piece shaft arrangement. When correctly designed, balanced, lubricated, sealed, and maintained, the coupling can support stable operation in metallurgy, mining, ports, construction, hoisting, and large conveying systems.

Compared with many alternative coupling types, the WGT design is especially well suited to high-torque, heavy-load, low-speed, and rugged service. Its advantages are strongest where a metallic torque connection, long shaft separation, and practical misalignment compensation are required. It should be selected according to actual operating data, with attention to service factor, bore capacity, speed, spacer length, environment, lubrication, and maintenance access.

Zhenjiang Orienthold Machinery Co., Ltd. strengthens this product offering through integrated design, production, inspection, and service. Its technical capabilities, manufacturing equipment, quality supervision system, customization support, and industry experience provide a reliable foundation for customers seeking industrial coupling solutions. By combining accurate engineering with application-focused service, the company can help users achieve more dependable power transmission and lower the operational risks associated with long-shaft machinery.

References

1. General principles of industrial shaft coupling selection, torque calculation, service factors, and alignment practice.

2. Gear coupling engineering practices covering crowned tooth geometry, backlash, lubrication, sealing, and misalignment compensation.

3. Industrial gearbox and power transmission maintenance guidance concerning gear tooth wear, lubricant contamination, vibration, and thermal monitoring.

4. Mechanical design references for shaft torsion, rotating-shaft balance, spacer stiffness, critical-speed evaluation, and fatigue loading.

5. Materials and heat-treatment references for high-strength steel components, surface hardening, contact fatigue resistance, and dimensional control.

6. Industrial machinery inspection practices for dimensional verification, runout measurement, non-destructive testing, assembly inspection, and final quality documentation.

Product: WGT Type Crowned-Gear Coupling with Intermediate Spacer
