GICL Drum-Type Gear Coupling for Heavy-Duty Power Transmission

Industrial drive systems operating under high torque, impact loading, low rotational speed, and frequent starting and stopping require more than a basic shaft connection. They require a coupling capable of transmitting power reliably while accommodating alignment errors, axial movement, structural deformation, vibration, and changing operating conditions. The GICL drum-type gear coupling is designed for this demanding role. It provides a robust connection between shafts and combines high torque transmission capacity with compensation for axial, radial, and angular misalignment.

Drum-type gear couplings are widely used in metallurgy, mining, lifting and transportation, construction, heavy machinery, and other industries in which equipment must operate safely under severe mechanical conditions. Applications may include cranes, hoisting mechanisms, conveyors, rolling mills, material-handling systems, winches, reducers, and other low-speed, high-load drives. In these systems, the coupling is not simply a connector between two shafts. It is an important part of the complete transmission system, influencing equipment availability, maintenance requirements, shaft loading, and service life.

The GICL design addresses these needs through a combination of an internal gear hub, an external-tooth sleeve, and crowned external gear teeth. The crowned tooth profile is the defining feature of the product. Unlike a conventional straight-tooth arrangement, a crowned tooth is machined with a spherical profile. This allows the coupling to maintain more favorable tooth contact when the connected shafts are not perfectly aligned or when operating loads cause deformation in the machine structure.

By improving the contact relationship between the internal and external gears, the crowned profile helps distribute torque over multiple teeth, reduce local stress concentration, and limit uneven wear. The result is a coupling suitable for heavy-duty applications in which ordinary rigid couplings or less adaptable gear couplings may experience excessive shaft loading, tooth edge contact, or premature wear.

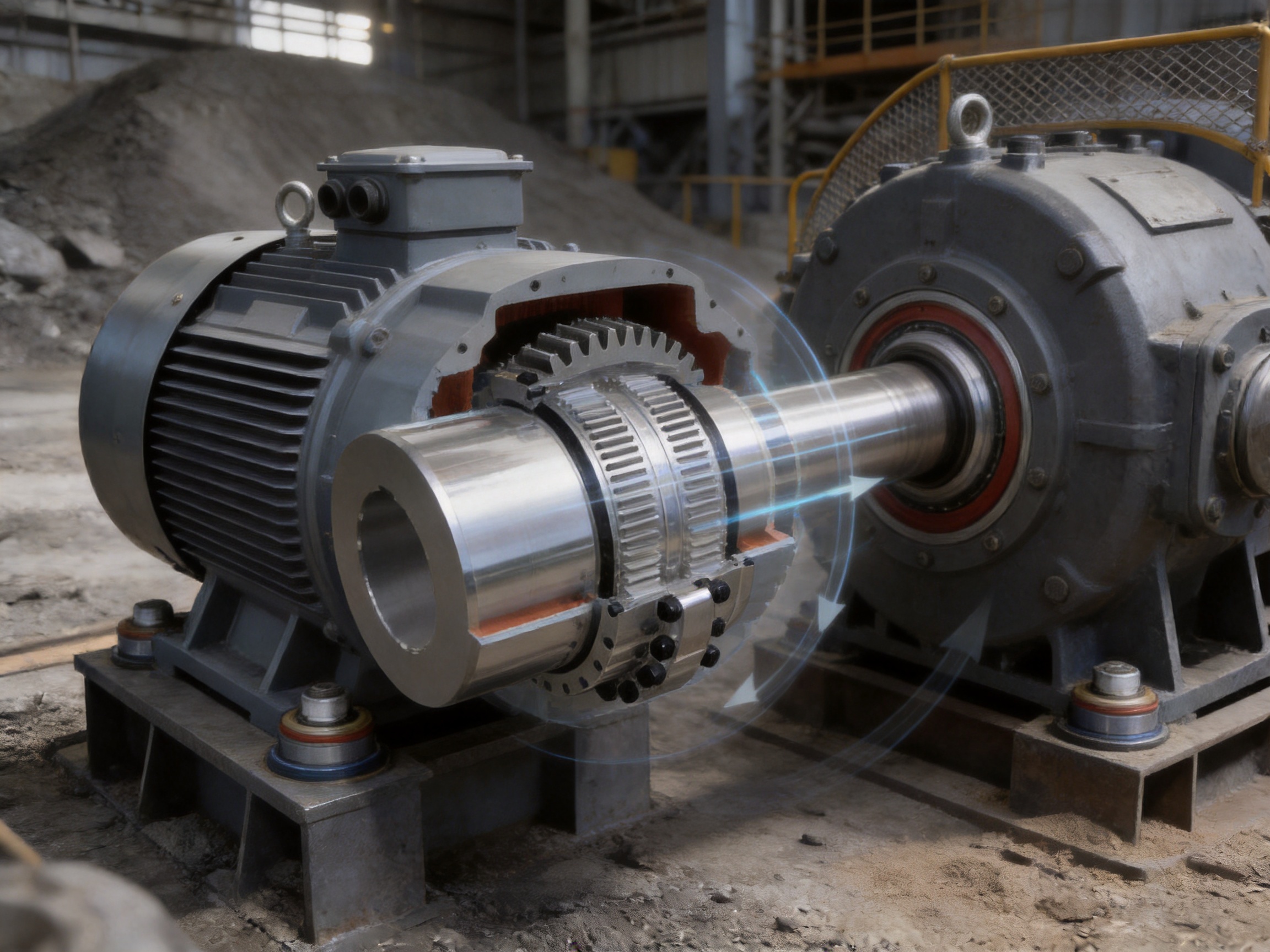

GICL Type Drum-type Gear Coupling

Role of a Coupling in Heavy Industrial Equipment

A coupling connects two shafts so that rotational power can pass from a driving machine to a driven machine. In a typical industrial transmission, the driving side may be an electric motor, hydraulic motor, turbine, or engine, while the driven side may be a gearbox, drum, conveyor, pump, rolling mill, or lifting mechanism. The coupling must transfer torque while responding to the physical behavior of both machines.

Even when a system is carefully designed and installed, perfect alignment is difficult to maintain throughout the entire operating period. Shaft centerlines can shift as foundations settle, bearings wear, housings expand thermally, or machine frames deflect under load. Assembly tolerances and manufacturing deviations may also create small angular, radial, or axial offsets. In lifting and heavy material-handling equipment, these effects may be intensified by shock loads, load reversals, braking, and frequent acceleration.

A rigid shaft connection cannot accommodate these movements without transferring additional forces to the connected shafts and bearings. Excessive reaction forces may result in bearing overload, shaft bending, gear damage, vibration, seal wear, and mounting problems. A flexible coupling reduces these risks by allowing controlled relative movement while continuing to transmit torque.

The GICL drum-type gear coupling is intended for applications where the required flexibility must be combined with high mechanical strength. Its gear engagement provides a positive torque path, while the crowned teeth permit the coupling to accommodate misalignment. This combination is particularly valuable in low-speed, high-torque equipment because such systems often generate substantial torque reactions even when their rotational speed is relatively modest.

Construction and Operating Principle

Internal Gear Hub

The internal gear hub is mounted on one of the connected shafts and provides the internal tooth form that engages with the external teeth of the sleeve. It forms one half of the positive mechanical transmission path. Depending on the application and selected configuration, the hub may be installed using a suitable shaft connection such as a keyed arrangement or another specified mounting method.

The hub must maintain accurate concentricity with the shaft and provide a reliable foundation for the internal gear teeth. Its geometry, material condition, heat treatment, and machining accuracy influence the coupling’s load-carrying ability. Precision in the hub is especially important because uneven tooth engagement can cause localized loading and increase wear.

External-Tooth Sleeve

The external-tooth sleeve surrounds the gear hub and transfers torque through its external gear teeth. The sleeve is connected to the other shaft or to the corresponding machine component. Its internal surface incorporates the tooth space required to engage with the hub. The sleeve also provides the necessary envelope for relative movement between the hub and sleeve during operation.

The sleeve is a critical structural member because it must withstand transmitted torque, tooth forces, impact loading, and the mechanical effects of misalignment. In a drum-type configuration, the crowned external teeth provide the flexibility required for angular and radial displacement while preserving positive engagement.

Crowned Tooth Geometry

The crowned tooth profile distinguishes the GICL coupling from a standard straight-tooth gear coupling. The external gear teeth are machined with a spherical or barrel-shaped profile. The center of the corresponding spherical geometry coincides with the coupling axis. This shape allows the tooth contact area to remain more favorable when the shaft axes are not perfectly collinear.

In a straight-tooth coupling, angular misalignment can cause the teeth to contact heavily near one edge. Such edge contact reduces the effective contact area and raises local pressure. Under high torque, the resulting stress concentration may accelerate tooth pitting, scuffing, plastic deformation, or fatigue damage.

The crowned tooth reduces the tendency toward severe edge loading. As the connected shafts move relative to one another, the curved profile permits the tooth surfaces to maintain contact across a more useful portion of the tooth width. This helps distribute the transmitted load among several teeth and reduces the influence of small alignment errors.

Tooth side clearance is also important. Adequate clearance provides room for the hub and sleeve to move relative to one another without binding. At the same time, the clearance must be controlled so that backlash does not become excessive. The GICL design uses an optimized tooth side clearance concept to support smooth relative movement and reliable torque transfer.

Misalignment Compensation

Angular Misalignment

Angular misalignment occurs when the axes of two connected shafts intersect at an angle rather than remaining exactly parallel. This condition may be present during initial assembly or develop during operation because of frame deflection, bearing movement, foundation settlement, or thermal effects.

The crowned gear profile allows the coupling to continue transmitting torque when the two shaft axes are at a limited angle. The spherical tooth form helps maintain contact without forcing the tooth edges to carry the entire load. This is a major advantage in heavy industrial machines, where small angular changes may be unavoidable under working loads.

Radial Misalignment

Radial or parallel misalignment occurs when two shaft axes remain parallel but are offset from one another. In practice, this may be caused by installation tolerances, movement of bearing housings, or deformation of the machine base. The gear coupling allows controlled relative movement between the hub and sleeve to accommodate this condition.

Radial flexibility reduces the need for the shafts and bearings to absorb all alignment errors. When the coupling is correctly selected and installed, it can help limit the secondary forces that would otherwise be transmitted into the machine structure.

Axial Displacement

Axial displacement occurs when one shaft moves along its axis relative to the other shaft. Thermal expansion, floating bearing arrangements, drum movement, structural deflection, and assembly conditions can all contribute to axial movement.

The GICL drum-type gear coupling is particularly useful where relatively large axial displacement may occur. The sliding relationship between the internal gear hub and external-tooth sleeve allows the connected shafts to move axially while remaining engaged for torque transmission. This capability helps reduce additional axial loads on shafts, bearings, and connected equipment.

Axial movement must remain within the permitted operating range of the selected coupling. The coupling should never be treated as an unlimited-motion device. Proper design requires consideration of the expected displacement, end float, installation position, lubrication condition, and the possibility of movement caused by abnormal operating events.

Advantages in Heavy-Duty Applications

High Torque Transmission

Gear couplings transmit torque through direct tooth engagement rather than through a flexible elastomeric element. This construction enables a compact coupling to handle substantial torque in demanding industrial applications. The positive gear connection is well suited to low-speed machinery where torque is high and the transmission must tolerate load changes.

The actual torque capacity depends on the coupling size, tooth geometry, materials, heat treatment, service factor, speed, lubrication, shaft connection, and operating environment. Selection should therefore be based on complete application data rather than nominal motor power alone. Starting torque, braking torque, peak load, reversing duty, and shock loading should all be reviewed.

Improved Load Distribution

When multiple teeth share the transmitted load, the stress applied to each individual tooth is reduced compared with a condition in which only a small contact area carries the torque. The crowned profile supports better load distribution by reducing the likelihood of concentrated edge contact.

More even loading can improve resistance to tooth wear and fatigue. It may also reduce vibration caused by irregular tooth engagement. In applications such as cranes, rolling equipment, and conveyors, where load changes are common, this feature contributes to more stable mechanical operation.

Reduced Shaft and Bearing Loading

Misalignment that is not absorbed by the coupling must be reacted by the shafts, bearings, housings, or foundations. These additional forces can shorten bearing life and increase shaft bending. By accommodating controlled angular, radial, and axial movement, the GICL coupling helps isolate connected equipment from some of the mechanical effects associated with alignment variation.

It is important to understand that a flexible coupling does not eliminate all reaction forces. Misalignment, friction, tooth pressure, and axial restraint still produce forces within the system. However, an appropriately selected and properly maintained coupling can substantially reduce the harmful effects of unavoidable movement.

Suitability for Shock and Impact Loads

Heavy equipment frequently experiences torque fluctuations rather than steady, uniform loading. A crane may accelerate a suspended load, a conveyor may start with material already on the belt, and a rolling mill may experience sudden changes in resistance. Mining and construction machinery can also be exposed to transient loads caused by material irregularities or interrupted movement.

The robust gear construction of the GICL coupling is suitable for applications in which shock and impact loads are present. Its ability to maintain tooth engagement while accommodating misalignment helps preserve a reliable transmission path during changing load conditions. Proper service factors remain essential, because no coupling should be selected solely for normal running torque when severe transient loads are expected.

Compact Power Transmission

Gear couplings can transmit high torque within a relatively compact radial envelope. This is valuable where the machine layout provides limited installation space or where the coupling must fit within a drum, housing, guard, or support structure.

A compact coupling can also simplify the arrangement of adjacent components. Nevertheless, sufficient space must be provided for inspection, lubrication, maintenance, guard installation, and any expected axial movement. Compactness should not be achieved by restricting the coupling’s movement or making maintenance inaccessible.

Comparison with Other Coupling Types

Different coupling types are appropriate for different operating conditions. The GICL drum-type gear coupling is not intended to replace every other coupling design. Its main advantages become clear when high torque, misalignment compensation, compact construction, and severe industrial service are considered together.

Coupling Type	Typical Strength	Potential Limitation in Heavy-Duty Gear Applications	Position of the GICL Drum-Type Gear Coupling
Rigid coupling	Simple construction and accurate torque transmission when alignment is stable	Transfers alignment errors and thermal movement directly to shafts and bearings	Provides controlled flexibility while maintaining positive gear engagement
Elastomeric coupling	Good vibration damping and simple maintenance in moderate-duty systems	Elastomer life may be influenced by temperature, chemicals, aging, and high shock loads	Uses metallic gear engagement for high torque and severe industrial service
Pin and bush coupling	Useful general-purpose flexibility and moderate shock absorption	Flexible elements may wear or require replacement under severe cyclic loading	Offers a high-load gear connection with crowned tooth compensation
Disc or diaphragm coupling	High torsional stiffness and low-maintenance operation in precision systems	May have more limited tolerance for large axial or installation movement	Suited to heavy low-speed drives requiring substantial displacement capacity
Chain coupling	Simple and economical torque transmission	Chain wear, lubrication needs, and backlash may limit demanding applications	Provides an enclosed gear-based transmission path with improved alignment capability
Standard straight-tooth gear coupling	High torque density and positive mechanical engagement	Greater sensitivity to edge loading under angular misalignment	Uses crowned external teeth to improve contact under alignment variation

The comparison shows that product selection must be based on application priorities. An elastomeric coupling may be preferable when torsional damping is the primary requirement and operating loads are moderate. A diaphragm coupling may be selected for high-speed precision machinery with carefully controlled alignment. A rigid coupling may be suitable for a short, accurately aligned shaft train. However, in low-speed, high-torque equipment exposed to axial movement, structural deflection, and impact loading, the crowned gear construction of the GICL design provides important practical benefits.

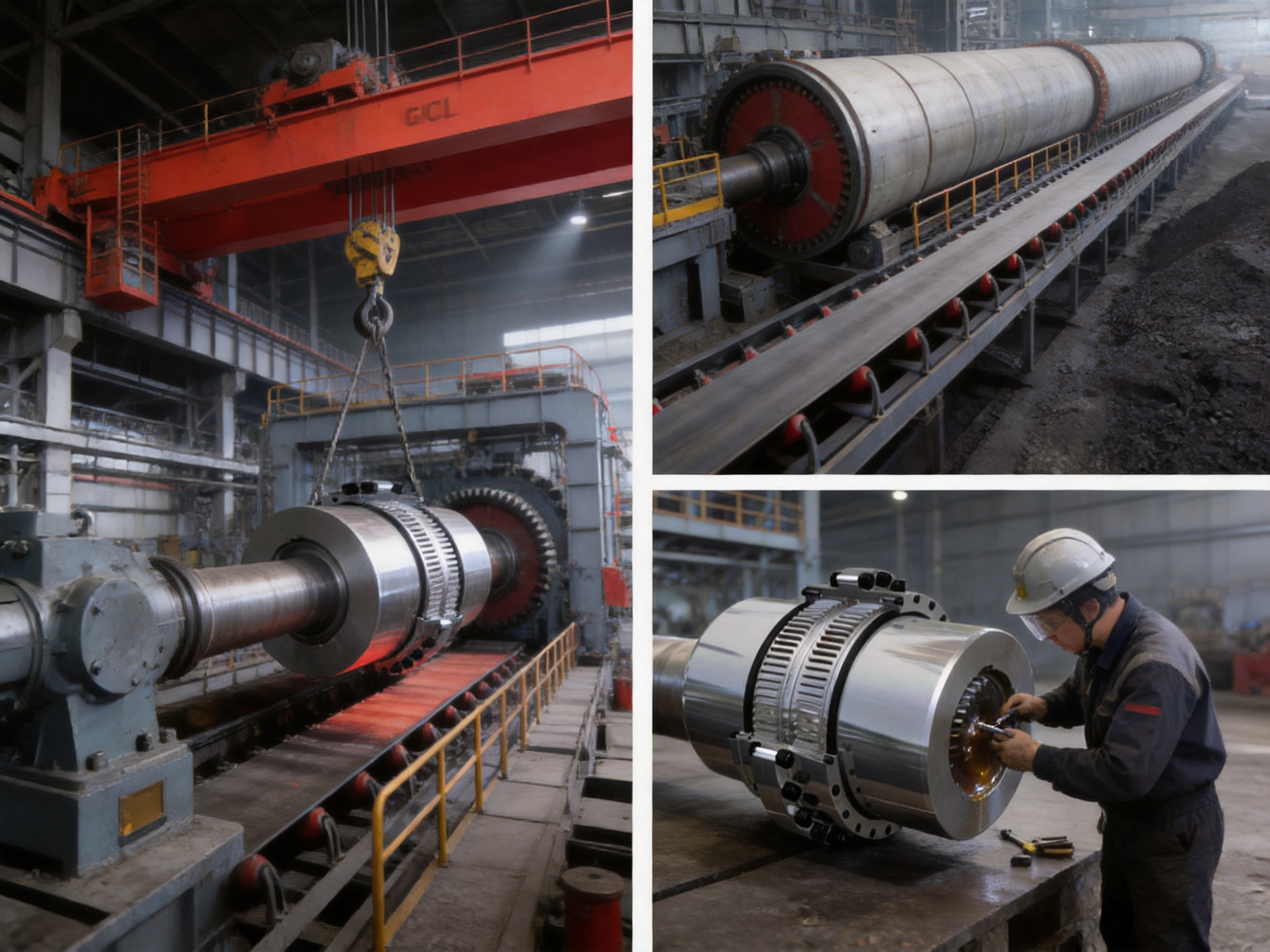

Applications Across Industrial Sectors

Metallurgical Equipment

Metallurgical equipment often operates under high loads, repeated starts and stops, and severe environmental conditions. Rolling mills, transfer systems, coilers, shears, charging machines, and material-handling mechanisms may experience sudden changes in torque as steel or other metal products enter the working zone.

In these applications, the coupling must withstand demanding duty while tolerating movement caused by thermal expansion and structural deformation. The GICL coupling’s crowned gear profile supports stable tooth contact when the machine frame shifts under load. Its high torque capacity also makes it suitable for large reducers and drive assemblies used in metallurgical production lines.

Mining Machinery

Mining equipment is exposed to dust, vibration, impact, irregular material loads, and difficult access for maintenance. Conveyors, crushers, feeders, hoists, winches, and processing equipment may operate continuously or under highly variable loads.

A coupling used in mining must be mechanically robust and capable of maintaining torque transmission despite alignment changes. The GICL drum-type gear coupling can support these requirements when selected with the correct service factor and protected by an appropriate guard and lubrication system.

For mining equipment, installation quality is particularly important. Dust and contamination must be prevented from entering the tooth area, and lubrication intervals should reflect the actual environment. Regular inspection can identify seal damage, lubricant loss, abnormal wear, or shaft movement before a breakdown occurs.

Lifting and Crane Equipment

Crane mechanisms and hoisting systems experience frequent acceleration, deceleration, braking, reversing, and load changes. Drum drives may also be subject to axial movement and structural deflection. A coupling failure in a lifting application can create serious safety and production consequences, making reliable torque transmission essential.

The GICL design is well suited to crane drum and hoisting applications because it combines a positive mechanical connection with the ability to compensate for misalignment. The coupling can help reduce additional loads on the shaft system when the connected components move under suspended loads or braking forces.

Crane applications require careful attention to safety factors, braking torque, emergency stopping, duty classification, inspection accessibility, and applicable regulations. The coupling should be integrated into the overall safety design rather than considered as an isolated component.

Transportation and Material Handling

Large conveyors, bucket elevators, transfer machines, and transportation systems often operate for long periods and may be difficult to stop for repairs. Drive components must withstand repeated loading and maintain reliable operation despite foundation movement or changing material resistance.

The GICL coupling can provide a durable connection between motors, gear reducers, and driven shafts. Its ability to accept limited alignment variation can be beneficial in long or heavy machine structures in which complete geometric stability is difficult to maintain.

Construction and Heavy Machinery

Construction machinery may encounter shock loads, uneven operating conditions, and frequent changes in direction. Winches, hoisting units, mixers, crushers, and large mechanical drives require couplings that can tolerate severe service without sacrificing torque transmission.

The crowned gear design helps accommodate the relative movement that can occur in large frames and mobile or semi-mobile equipment. The coupling’s metallic construction is also suitable for applications where high mechanical strength is more important than the vibration-damping characteristics of a flexible polymer element.

Manufacturing Strengths and Quality Control

A heavy-duty coupling can perform reliably only when its design, materials, machining, assembly, and inspection are controlled as a complete process. Zhenjiang Orienthold Machinery Co., Ltd. integrates design, production, and service, allowing the company to manage the product from engineering development through delivery and after-sales support.

Integrated Design and Production

Integrated manufacturing supports closer coordination between product design and shop-floor production. Engineers can consider the practical requirements of machining, assembly, inspection, lubrication, and installation while developing the coupling. Production personnel can also provide feedback regarding manufacturing feasibility, tool access, dimensional control, and process stability.

This approach is valuable for customized industrial couplings. Heavy machinery rarely operates under identical conditions, and customers may require different bore dimensions, shaft connections, mounting arrangements, materials, or surface treatments. A manufacturer with in-house technical capability can review these requirements more efficiently than a supplier limited to standardized catalog products.

Precision Machining

The tooth geometry of a gear coupling requires accurate machining. Tooth profile, pitch, clearance, concentricity, runout, and axial positioning all affect load distribution and operating behavior. The crowned profile must be produced consistently so that the coupling can accommodate misalignment without creating unintended interference or excessive pressure.

Precision machining also applies to the hub bore, keyway or other shaft connection, flange surfaces, and locating features. Dimensional accuracy in these areas supports correct installation and helps maintain the designed relationship between the coupling and connected shafts.

Machining processes should be supported by suitable process planning, tooling control, measurement procedures, and inspection records. Where required by the application, critical dimensions can be verified using precision gauges, coordinate measurement equipment, gear inspection methods, and runout checks.

Material and Heat-Treatment Management

Coupling components must combine strength, toughness, wear resistance, and dimensional stability. The selected material depends on coupling size, transmitted torque, operating speed, shock loading, environmental conditions, and customer requirements.

Heat treatment may be applied to improve the strength and wear performance of gear teeth and other highly loaded areas. Consistent heat-treatment control is important because excessive hardness may reduce toughness, while insufficient hardness may accelerate wear or deformation. Quality management should therefore include material certification, heat-treatment traceability, hardness verification, and inspection of finished components where applicable.

Assembly and Inspection

Assembly quality influences the final behavior of the coupling as much as individual component accuracy. Internal and external teeth must engage correctly, clearances must be maintained, seals must be installed properly, and fastening elements must be tightened according to the specified procedure.

Inspection may include dimensional checks, visual examination, tooth contact verification, runout measurement, balance evaluation where required, and functional assessment of relative movement. Complete testing methods help identify defects before shipment and provide greater confidence for customers installing the product in critical industrial equipment.

The company operates with a strict quality supervision system and comprehensive inspection and testing equipment. Its products are manufactured in accordance with applicable national standards, while project-specific requirements can be reviewed during the technical consultation and order process.

Customization Capability

Industrial customers may require a coupling adapted to a particular shaft diameter, installation space, operating torque, axial movement, environmental condition, or maintenance strategy. Customization may involve dimensions, bore arrangements, flange details, materials, coatings, seals, lubrication provisions, or other interface requirements.

Customization should begin with a complete application review. Relevant information includes motor or driver power, normal and peak torque, speed, start frequency, braking conditions, shaft sizes, shaft extension lengths, expected misalignment, axial displacement, ambient temperature, contamination, installation orientation, and maintenance access.

A technically responsible manufacturer should confirm the design basis before production rather than simply adapting a standard drawing without evaluating the operating conditions. The integrated design and manufacturing capabilities of Orienthold Machinery support this type of application-focused service.

Engineering Selection Considerations

Torque and Service Factor

The first selection step is to determine the torque that the coupling must transmit. Motor power and speed can be used to estimate nominal torque, but the selection must also consider starting torque, overloads, reversing, braking, impact, and the duty cycle.

A service factor is applied to account for the severity of operation. Equipment with smooth, continuous loading may require a lower factor than equipment with frequent starts, shock loads, load reversals, or emergency braking. The final selection should be confirmed using the manufacturer’s technical data and the actual duty classification.

Speed and Dynamic Behavior

Although the GICL coupling is particularly associated with low-speed, high-torque applications, operating speed still affects the design. Centrifugal forces, lubrication behavior, balance, vibration, and tooth dynamics should be reviewed at the maximum continuous and transient speeds.

For higher-speed operation, balancing requirements may become more demanding. The coupling guard must also be designed to provide safe containment without restricting movement or interfering with inspection and lubrication.

Misalignment and Axial Movement

The expected angular, radial, and axial movements should be quantified whenever possible. It is not sufficient to state that a system has “some” misalignment. The design team should estimate installation tolerance, thermal growth, bearing movement, frame deflection, and any displacement caused by the operating load.

Misalignment limits must not be used as a substitute for proper alignment. A flexible coupling is intended to accommodate unavoidable movement, not to compensate for careless installation. Excessive misalignment increases tooth pressure, friction, wear, and reaction forces even when the coupling remains operational.

Environment and Lubrication

Gear couplings generally require suitable lubrication to reduce friction, control tooth wear, and protect contacting surfaces. The lubricant must be compatible with the operating temperature, speed, sealing arrangement, and environmental conditions.

Mining dust, water, chemical exposure, high temperature, and outdoor weather can all affect lubricant life and seal performance. The lubrication method and maintenance interval should be selected according to the actual environment rather than a generic schedule.

Shaft and Installation Arrangement

The shaft diameters, keyways, shoulders, end float, hub fit, and available installation space must be checked before ordering. The coupling must be capable of being installed and removed without unnecessary disassembly of adjacent equipment.

Access for inspection and relubrication is also important. A coupling that is technically suitable but inaccessible may create avoidable maintenance delays. The design should include adequate guarding, inspection openings where appropriate, and safe procedures for isolation before work begins.

Installation Best Practices

Correct installation is essential for obtaining the intended performance of a drum-type gear coupling. Before installation, all components should be examined for shipping damage, corrosion, contamination, burrs, or dimensional problems. The shaft ends and mounting surfaces should be clean and free from oil or debris that could affect the fit.

The shafts should be aligned according to the specified limits before the coupling is assembled. Alignment should be checked in both angular and parallel directions, and the expected axial position should be considered. Soft foot, loose foundation bolts, bearing movement, and shaft runout should be corrected before final alignment.

Hubs should be installed using approved methods that avoid damage to bearings, seals, or gear teeth. Force should not be applied through the coupling in a way that transfers impact into sensitive components. Keys, retaining elements, fasteners, and locking devices must be correctly fitted and secured.

After assembly, the coupling should be checked for free movement within its permitted range. The internal and external gear teeth should engage correctly, and there should be no binding caused by incorrect spacing or excessive misalignment. Lubricant should be applied according to the specified procedure, and the coupling guard should be installed before operation.

A controlled test run can help identify abnormal noise, vibration, temperature rise, lubricant leakage, or movement. The equipment should be stopped and inspected if any unusual condition appears. Initial operation is an important opportunity to confirm that the coupling is working as intended before the machine enters continuous service.

Maintenance and Service Life

Regular Inspection

Maintenance personnel should periodically inspect the coupling for lubricant leakage, damaged seals, unusual noise, vibration, temperature rise, loose fasteners, and evidence of tooth wear. The inspection frequency should reflect the operating hours, load severity, environment, and importance of the equipment.

Changes in vibration or operating noise may indicate misalignment, insufficient lubrication, tooth damage, bearing problems, or a change in the connected machine. Early investigation can prevent a minor condition from developing into a major failure.

Lubrication Control

Lubrication is one of the most important maintenance activities for a gear coupling. The correct lubricant quantity and type help maintain a protective film between the contacting tooth surfaces. Both under-lubrication and over-lubrication can cause problems. Insufficient lubricant increases wear and heat, while excessive lubricant may increase churning losses or create pressure and leakage issues in certain arrangements.

Lubricant condition should be evaluated where the application is severe. Contamination by water, dust, metal particles, or chemical substances may reduce protective performance. Seals and covers should be checked to ensure that the lubricant remains inside the coupling and contaminants remain outside.

Wear Assessment

Tooth wear should be assessed for uniformity. Even wear across the tooth surface generally indicates favorable engagement, while concentrated wear at one edge may indicate excessive angular or parallel misalignment. Pitting, scoring, discoloration, deformation, or cracked teeth require immediate technical evaluation.

Maintenance records should document inspection dates, lubricant service, alignment checks, observed wear, and any corrective action. Historical information helps identify trends and supports more accurate planning of replacement or overhaul work.

Replacement Planning

The useful life of a coupling depends on load, speed, alignment, lubrication, contamination, installation quality, and maintenance. A fixed service-life statement cannot apply to every machine. Instead, replacement should be based on condition, manufacturer guidance, inspection results, and the consequences of failure.

When a coupling is removed, the condition of the shafts, keys, bearings, seals, and adjacent components should also be examined. Replacing a worn coupling without correcting the underlying alignment or bearing problem may lead to repeated failure.

Why Manufacturing Partnership Matters

For industrial users, purchasing a coupling is not only a matter of obtaining a mechanical component. It is also a matter of selecting a technical partner capable of understanding the application, producing consistent parts, supporting installation, and responding to future service needs.

Orienthold Machinery combines coupling production with engineering consultation, customization, inspection, logistics coordination, and maintenance support. This one-stop approach can simplify procurement for customers operating complex machinery or requiring several related transmission products.

The company’s product range includes drum gear couplings, diaphragm couplings, elastic sleeve pin couplings, cross universal couplings, plum elastic couplings, elastomeric pin couplings, elastomeric pin gear couplings, crane drum couplings, and tire couplings. This broad range allows engineers to compare alternative coupling principles within one supplier relationship and select the design that best matches the required torque, flexibility, speed, damping, and environmental performance.

The company serves transportation, metallurgy, chemical engineering, mining, construction, and hoisting industries. Its experience across these sectors supports a practical understanding of the operating conditions that influence coupling performance. The combination of technical capability, production equipment, testing methods, and service resources is particularly valuable for customers requiring precision couplings or customized shaft connections.

Flexible logistics and payment options can also support international industrial projects, while maintenance assistance helps customers manage the product after delivery. A reliable supply relationship is especially important where replacement parts must be available quickly or where a coupling is integrated into a large production line.

Operational and Economic Benefits

The value of a heavy-duty coupling should be measured over the entire operating life of the equipment rather than only by initial purchase price. A coupling that supports stable tooth engagement, limits secondary shaft loads, and reduces wear may contribute to lower maintenance costs and fewer unplanned shutdowns.

Improved alignment tolerance can also reduce the time required to restore equipment after bearing replacement, foundation work, or component renewal. It does not eliminate the need for alignment, but it provides a greater margin for unavoidable operating movement.

The GICL design may help extend the service life of associated shafts, bearings, gears, and machine housings by reducing harmful reaction forces. These benefits depend on correct selection, installation, lubrication, and maintenance. A coupling cannot compensate for an undersized shaft, defective bearing, inadequate foundation, or persistent misalignment beyond its permitted range.

For high-consequence machinery, the cost of failure may include lost production, damaged material, emergency labor, secondary equipment damage, and safety risk. Selecting a coupling with appropriate torque capacity and displacement capability is therefore an important part of lifecycle cost management.

Application Review Checklist

Before ordering a GICL drum-type gear coupling, the following information should be prepared for technical review:

1. Driver type, rated power, rated speed, and starting characteristics.

2. Driven machine type and the normal, peak, and transient torque requirements.

3. Operating cycle, including starts per hour, reversing, braking, and emergency stops.

4. Shaft diameters, shaft materials, keyway details, shaft extensions, and available mounting length.

5. Expected angular, radial, and axial misalignment during installation and operation.

6. Ambient temperature, dust, water, chemicals, outdoor exposure, and other environmental conditions.

7. Installation orientation, lubrication method, inspection access, and guarding requirements.

8. Applicable national standards, customer specifications, safety requirements, and documentation needs.

9. Required delivery schedule, spare-part strategy, and long-term maintenance expectations.

Providing complete information allows the manufacturer to recommend an appropriate size and configuration rather than relying on incomplete assumptions. It also helps identify whether a standard design or a customized coupling is more suitable.

Frequently Asked Questions

What is a GICL drum-type gear coupling?

A GICL drum-type gear coupling is a heavy-duty flexible coupling that transmits torque through the engagement of an internal gear hub and an external-tooth sleeve. Its external gear teeth have a crowned profile, allowing the coupling to accommodate controlled angular, radial, and axial movement while maintaining torque transmission.

What is the main advantage of crowned teeth?

Crowned teeth help maintain a favorable contact pattern when the connected shafts are not perfectly aligned. They reduce the tendency for the tooth edges to carry excessive load, improve load distribution across multiple teeth, and help reduce local stress concentration and uneven wear.

Where is this coupling normally used?

It is suitable for low-speed, high-torque, and heavy-duty equipment used in metallurgy, mining, lifting, cranes, transportation, construction, material handling, and other industrial drive systems. The final suitability depends on the actual torque, speed, misalignment, environment, and duty cycle.

Can the coupling accommodate axial movement?

Yes. The hub and sleeve can accommodate controlled axial displacement while remaining engaged for torque transmission. The permitted displacement must be confirmed for the selected size and configuration. Excessive or uncontrolled axial movement can still damage the coupling or connected equipment.

Does the coupling eliminate the need for shaft alignment?

No. The coupling compensates for limited, unavoidable misalignment; it is not a replacement for proper alignment. Excessive misalignment increases tooth pressure, friction, wear, and reaction forces. Accurate installation remains essential for reliable service.

How does it compare with an elastomeric coupling?

The GICL coupling uses positive metallic gear engagement and is generally suited to higher torque and more severe industrial conditions. An elastomeric coupling may provide better torsional damping and may be preferable in applications where vibration isolation is the main priority. Selection should be based on the complete operating requirements.

How should the coupling be lubricated?

Lubrication should follow the manufacturer’s specified lubricant type, quantity, and service interval. The selected lubricant must be compatible with the speed, temperature, seals, and environment. Contamination, lubricant leakage, and seal damage should be checked during routine maintenance.

What information is needed for customized production?

Important information includes power, speed, torque, shock factors, shaft dimensions, keyway or mounting details, axial movement, angular and radial misalignment, environmental conditions, installation orientation, space limitations, and applicable standards. Complete data helps the manufacturer develop a safe and practical configuration.

What quality controls are important for a gear coupling?

Important controls include material verification, heat-treatment management, precision machining, tooth-profile inspection, dimensional inspection, concentricity and runout checks, assembly verification, lubrication and sealing checks, and final testing appropriate to the application.

Why work with an integrated manufacturer?

An integrated manufacturer can coordinate engineering, machining, assembly, inspection, customization, logistics, and after-sales service. This helps reduce communication gaps and provides a more consistent approach when the coupling must be adapted to a specific machine or operating condition.

Conclusion

The GICL drum-type gear coupling is engineered for industrial applications in which high torque, low speed, impact loading, and shaft movement occur together. Its internal gear hub and external-tooth sleeve provide a positive mechanical torque path, while the crowned external gear teeth help maintain effective contact under angular and radial misalignment. The coupling also accommodates controlled axial displacement, reducing the additional loads that might otherwise be imposed on shafts, bearings, and machine structures.

Compared with rigid couplings, it offers substantially greater movement compensation. Compared with many elastomeric or pin-based designs, its metallic gear construction is well suited to severe high-torque service. Compared with conventional straight-tooth gear couplings, its crowned tooth profile improves contact conditions and reduces the risk of concentrated edge loading when alignment changes during operation.

Product performance depends on more than tooth geometry. Correct selection, precision manufacturing, material control, heat treatment, assembly, lubrication, alignment, guarding, and inspection all contribute to reliable service. Orienthold Machinery supports these requirements through integrated design and production, advanced equipment, comprehensive testing methods, customization capability, and technical service for industries around the world.

For cranes, metallurgical lines, mining equipment, transportation systems, construction machinery, and other demanding drives, the GICL drum-type gear coupling provides a practical combination of torque capacity, flexibility, compact construction, and heavy-duty reliability. When matched carefully to the application and maintained correctly, it can support safer operation, longer component life, and more dependable industrial productivity.

References

1. Machinery’s Handbook, Industrial Power Transmission and Mechanical Design Principles.

2. American Gear Manufacturers Association, Gear Coupling Design and Rating Practices.

3. International Organization for Standardization, General Principles for Shaft Alignment and Mechanical Power Transmission.

4. National standards for industrial couplings, gear transmission components, inspection, and mechanical safety.

5. Manufacturer technical guidance for GICL drum-type gear couplings, including selection, installation, lubrication, and maintenance.

6. Industrial maintenance references concerning flexible couplings, bearing protection, alignment control, and condition monitoring.
